Alliance 61m 5 Section RZ

The Alliance 61M 5-Section RZ Boom Pump delivers exceptional reach, stability, and precision for large-scale civil and commercial projects. Its versatile RZ-fold design and advanced outrigger system allow for efficient setup and smooth concrete placement, even in challenging environments.

The Alliance 61M 5-Section RZ Boom Pump is engineered for strength, precision, and versatility — making it a top performer on today’s most demanding civil and commercial projects. With an impressive 200-foot vertical reach and a 5-section RZ-fold boom, this machine offers unmatched flexibility for complex pours and limited-access job sites.

The advanced X-style outrigger system ensures maximum stability and quick setup, even on uneven terrain. Combined with smooth hydraulic control and high-output delivery, the 61M provides efficient, consistent concrete placement from start to finish.

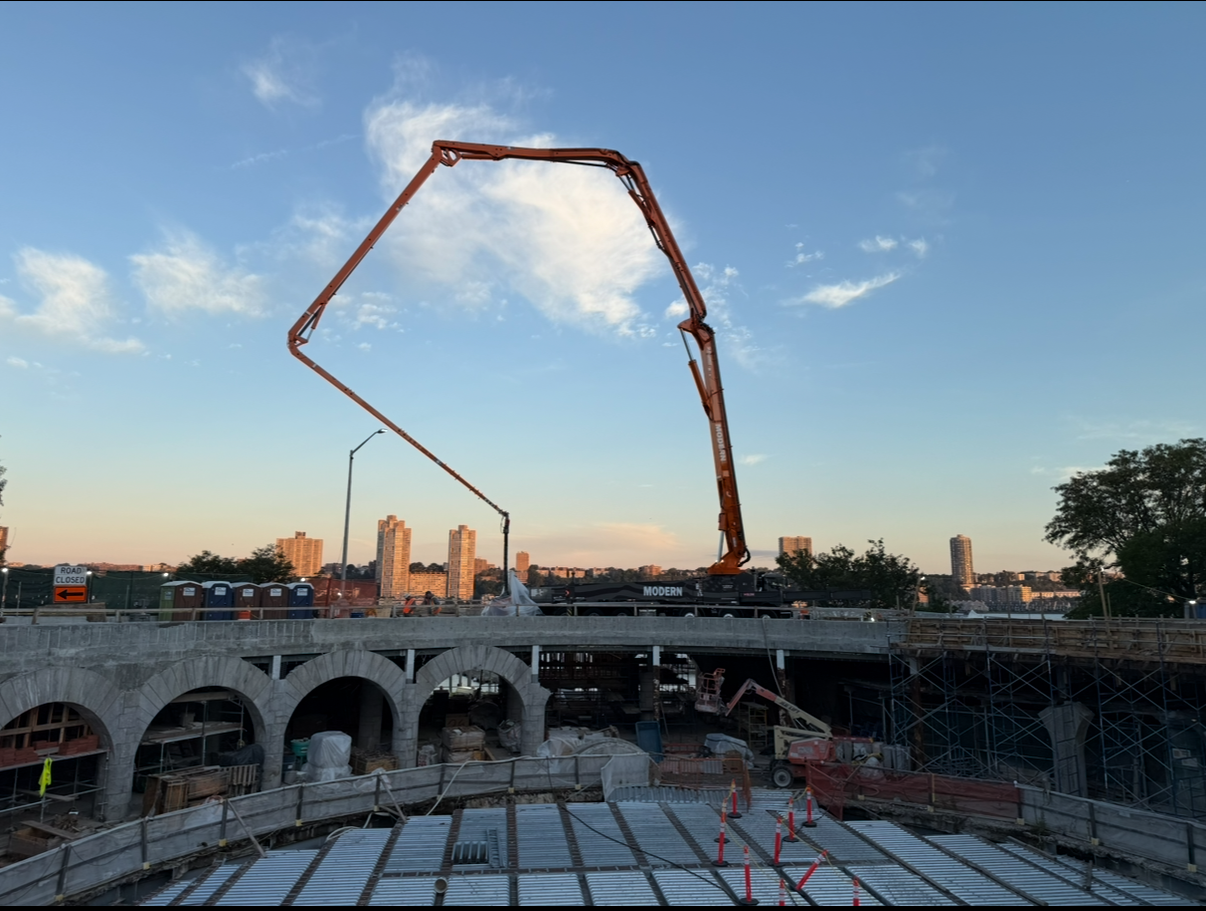

Built for performance and reliability, this boom pump is ideal for bridges, infrastructure, high-rise, and large foundation work, helping crews complete projects safely, efficiently, and on schedule.

Technical Specifications – Alliance 61M 5-Section RZ Boom Pump

Boom Design:

  • 5-Section RZ-Fold configuration for optimal flexibility and compact setup.
  • Maximum vertical reach: 200 ft (61 m)
  • Maximum horizontal reach: 183 ft (55.8 m)
  • Unfolding height: 41 ft (12.5 m)

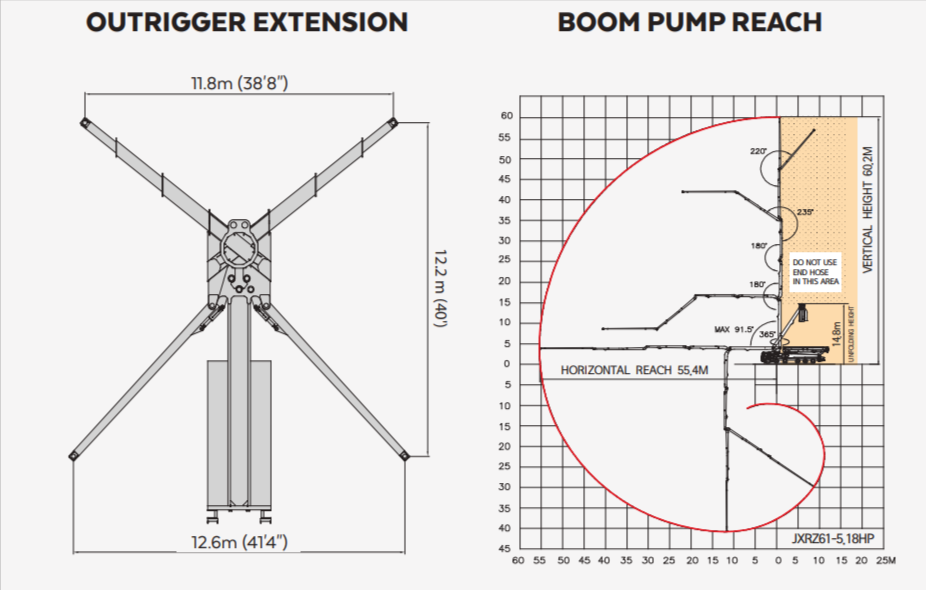

Outrigger System:

  • X-Style outriggers with telescopic front legs and swing-out rear design.
  • Provides excellent stability and minimal setup footprint.
  • Ideal for uneven terrain and confined job sites.

Pump Specifications:

  • Maximum output: 237 yd³/hr (181 m³/hr)
  • Maximum pressure on concrete: 1,233 psi (85 bar)
  • Pump cylinders: 10” x 83” (260 x 2100 mm)
  • Main hydraulic pump: Variable displacement axial piston pump.

Pipeline & Delivery System:

  • 5.5” (125 mm) pipeline system for smooth and efficient concrete flow.
  • Integrated wear-resistant components for long service life.

Chassis & Mobility:

  • Mounted on a 10x4 or 10x6 heavy-duty truck chassis (depending on configuration).
  • Compact travel dimensions for easy transport and jobsite mobility.

Safety & Control Features:

  • Fully proportional remote control with intuitive boom and outrigger functions.
  • Emergency stop systems on both remote and control panels.
  • Integrated stability monitoring and anti-tip technology.
